Lab Overview

  • Exposing the application
  • DNS Configuration
  • OKE Ingress
  • Securing with WAF

Ingress

Shown here is a basic service diagram for the way traffic flows to an application deployed on OKE

DNS
public-ip
LB
subnets
VCN
backends
OKE

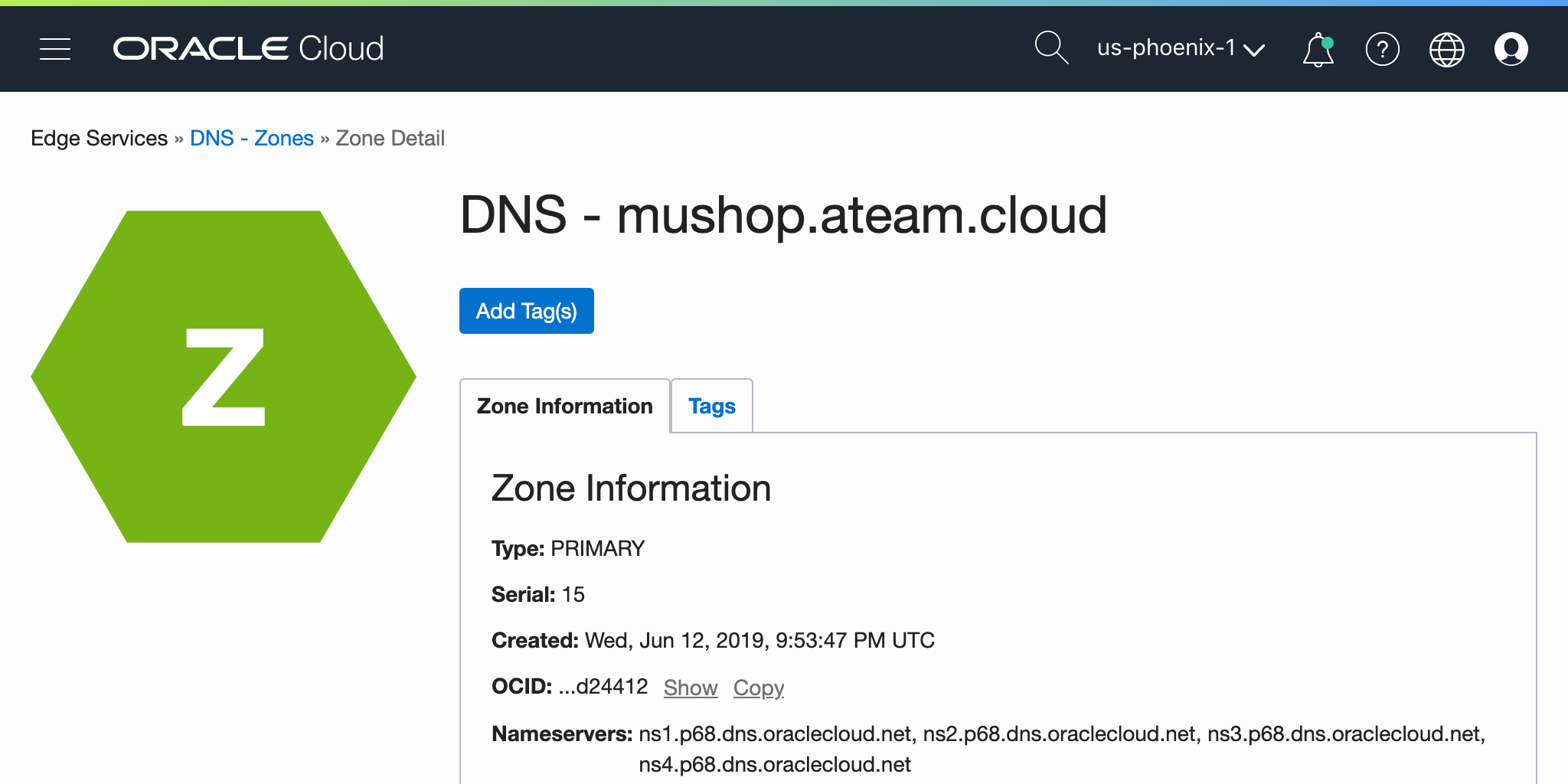

DNS DNS

The Oracle Cloud Infrastructure Domain Name System (DNS) service lets you create and manage your DNS zones. You can create zones, add records to zones, and allow Oracle Cloud Infrastructure's edge network to handle your domain's DNS queries.

โœ๏ธ DNS Zone may also be used as part of Traffic Steering Policies

OKE Ingress

Ingress exposes HTTP and HTTPS routes from outside the cluster to services within the cluster. Traffic routing is controlled by rules on the Ingress resource
LB
VCN
OKE

Explore how this works...

First an ingress controller is installed

helm repo add stable https://kubernetes-charts.storage.googleapis.com
helm install nginx-ingress stable/nginx-ingress \
--namespace nginx-ingress
kubectl get svc -n nginx-ingress
NAME                       TYPE           CLUSTER-IP    EXTERNAL-IP      PORT(S)                      AGE
nginx-ingress-controller   LoadBalancer   10.96.89.25   129.146.192.154   80:32491/TCP,443:31240/TCP   5m

An EXTERNAL-IP is assigned after a few seconds

Next verify the load balancer in OCI

oci lb load-balancer list \
--compartment-id <compartment> \
| jq '.data[] | {id: .id, name: .["display-name"], ipAddr: .["ip-addresses"][]["ip-address"]}'
{
  "id": "ocid1.loadbalancer.oc1.phx.aaaaaaaaucgamttt3piveonxw5d6ssirzxprcbrcv7vf6tgswna7qxdnvnfa",
  "name": "097f5359-9165-11e9-bfe8-0a580aed21e9",
  "ipAddr": "129.146.192.154"
}

Notice ๐Ÿ‘€ ipAddr matches EXTERNAL-IP assigned to the controller ๐Ÿค˜

Then deploy ingress on the cluster

kubectl apply -f deploy/complete/kubernetes/ingress/mushop-dev.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: mushop-dev
  annotations:
    kubernetes.io/ingress.class: nginx
spec:
  rules:
  - http:
      paths:
      - path: /
        backend:
          serviceName: edge
          servicePort: 80
kubectl get ingress mushop-dev

๐Ÿ”’ Web Application Firewall

The WAF service uses a layered approach to protect web applications against cyberattacks. This service includes over 250 predefined Open Web Access Security Project (OWASP), application, and compliance-specific rules.
  • Over 250 predefined Open Web Access Security Project (OWASP), application, and compliance-specific protection rules
  • Aggregated threat intelligence from multiple sources, including Webroot BrightCloudยฎ
  • Advanced Bot management with JavaScript verification, CAPTCHA challenge, whitelisting, device fingerprinting, and human interaction algorithms
  • Rule-based access control including HTTP headers, URL patterns, geolocation, and IP address characteristics
  • Layer 7 distributed denial-of-service (DDoS) attack protection

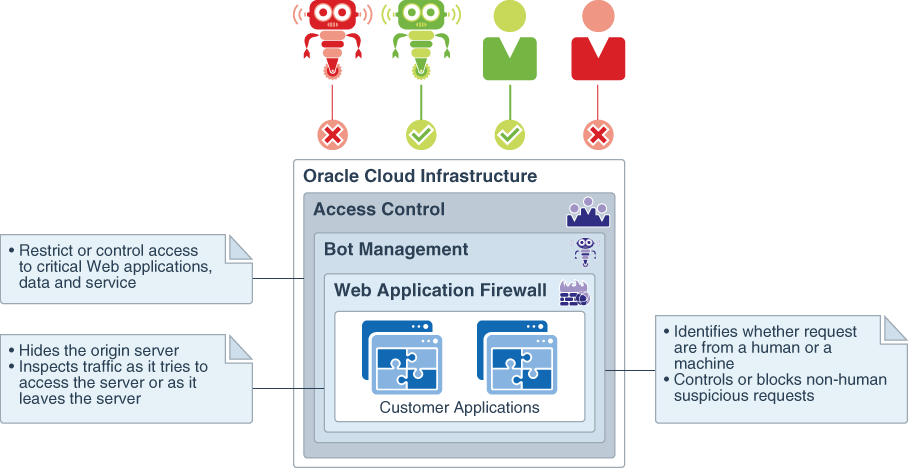

WAF

OCI Web Application Acceleration and Security Services

Ingress with WAF

WAF security added between DNS and load balance r

DNS
CNAME
๐Ÿ”’ WAF
public-ip
LB
VCN
OKE

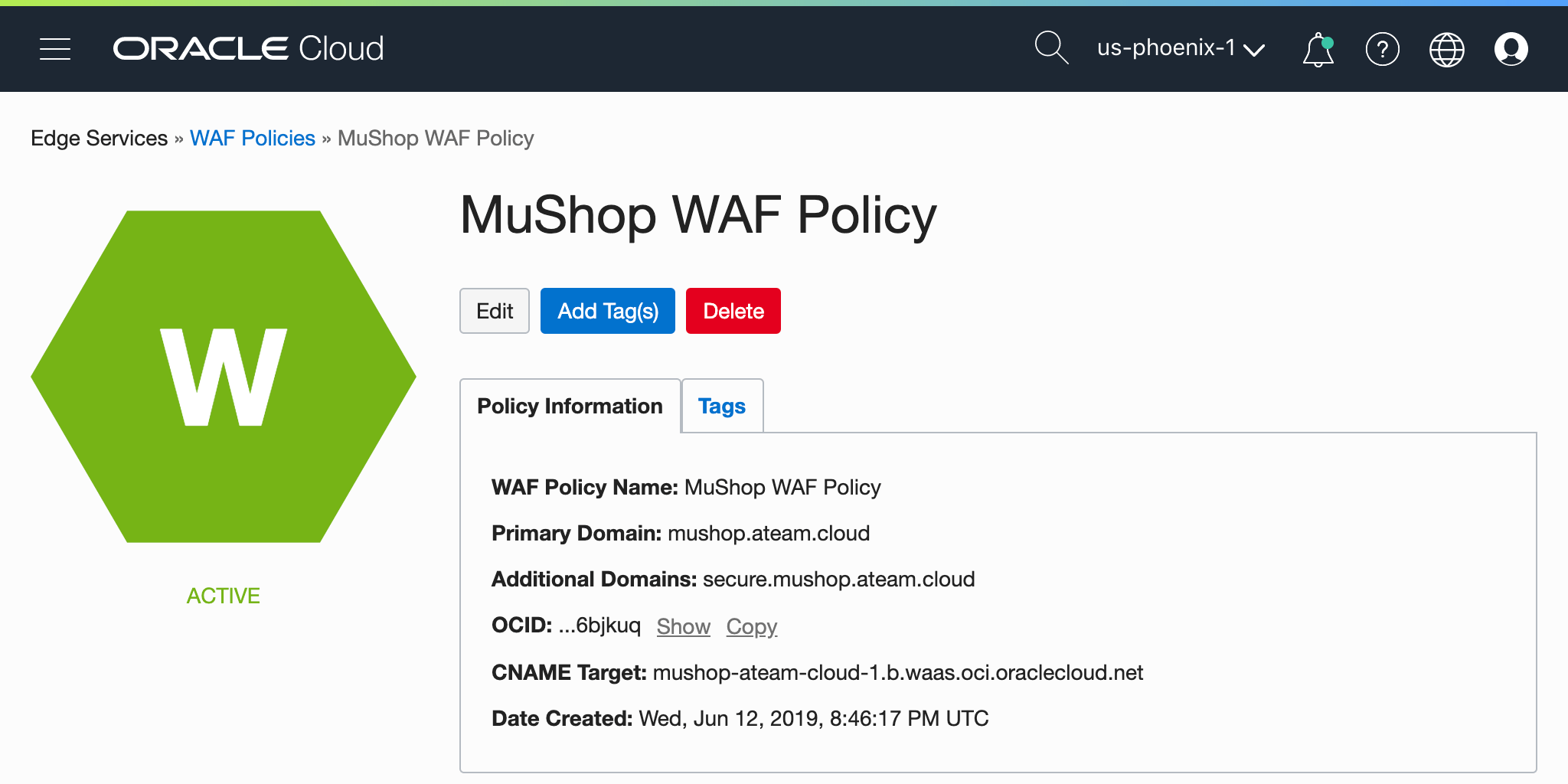

WAF in OCI Console

oci waas waas-policy list --compartment-id <compartment>

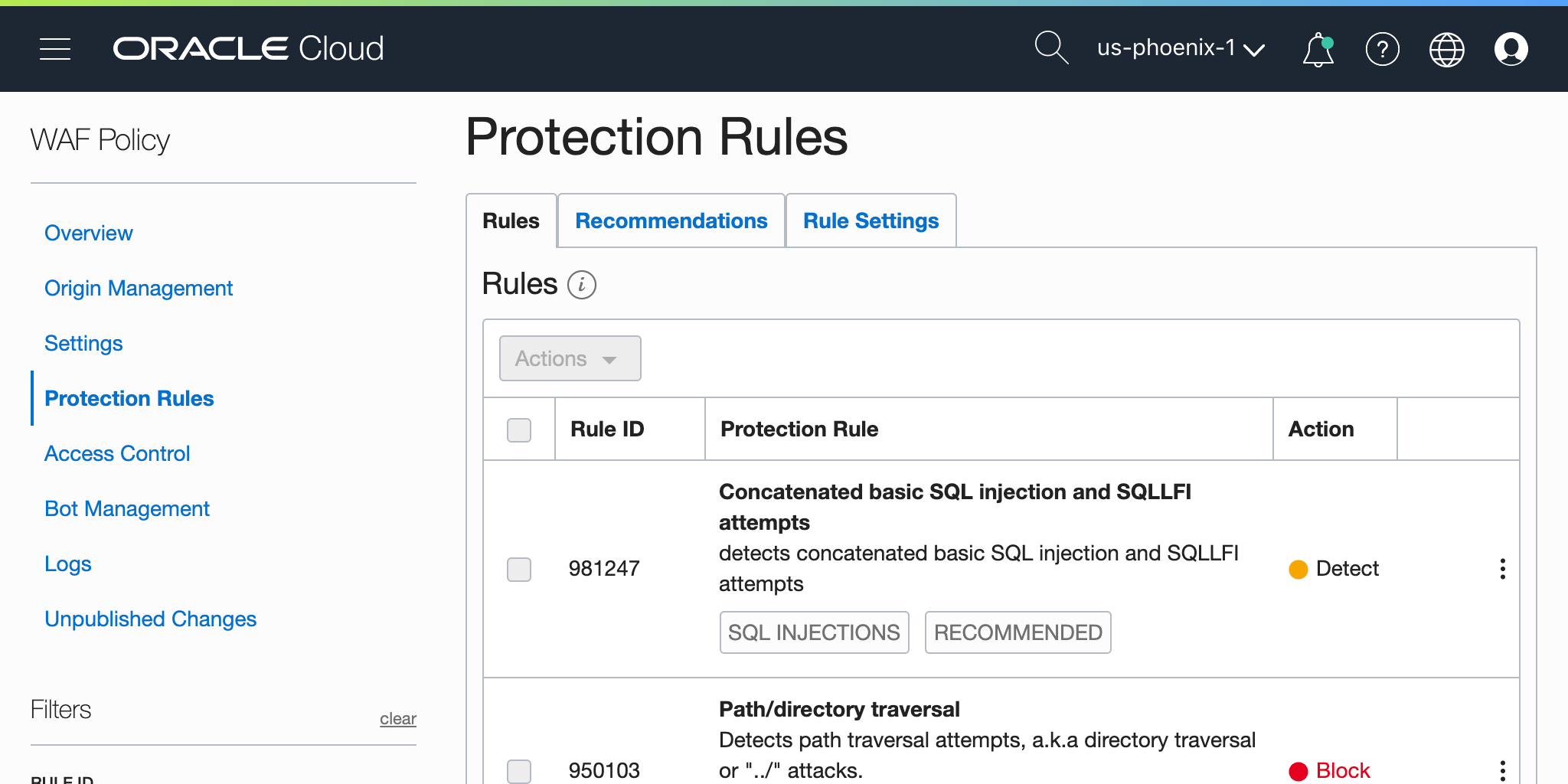

WAF Protection Rules

Applying protection to a WAF origin is done by choosing specific rules from OWASP Core Rule Set (CRS), where the action can be set to Detect, Block, or Off

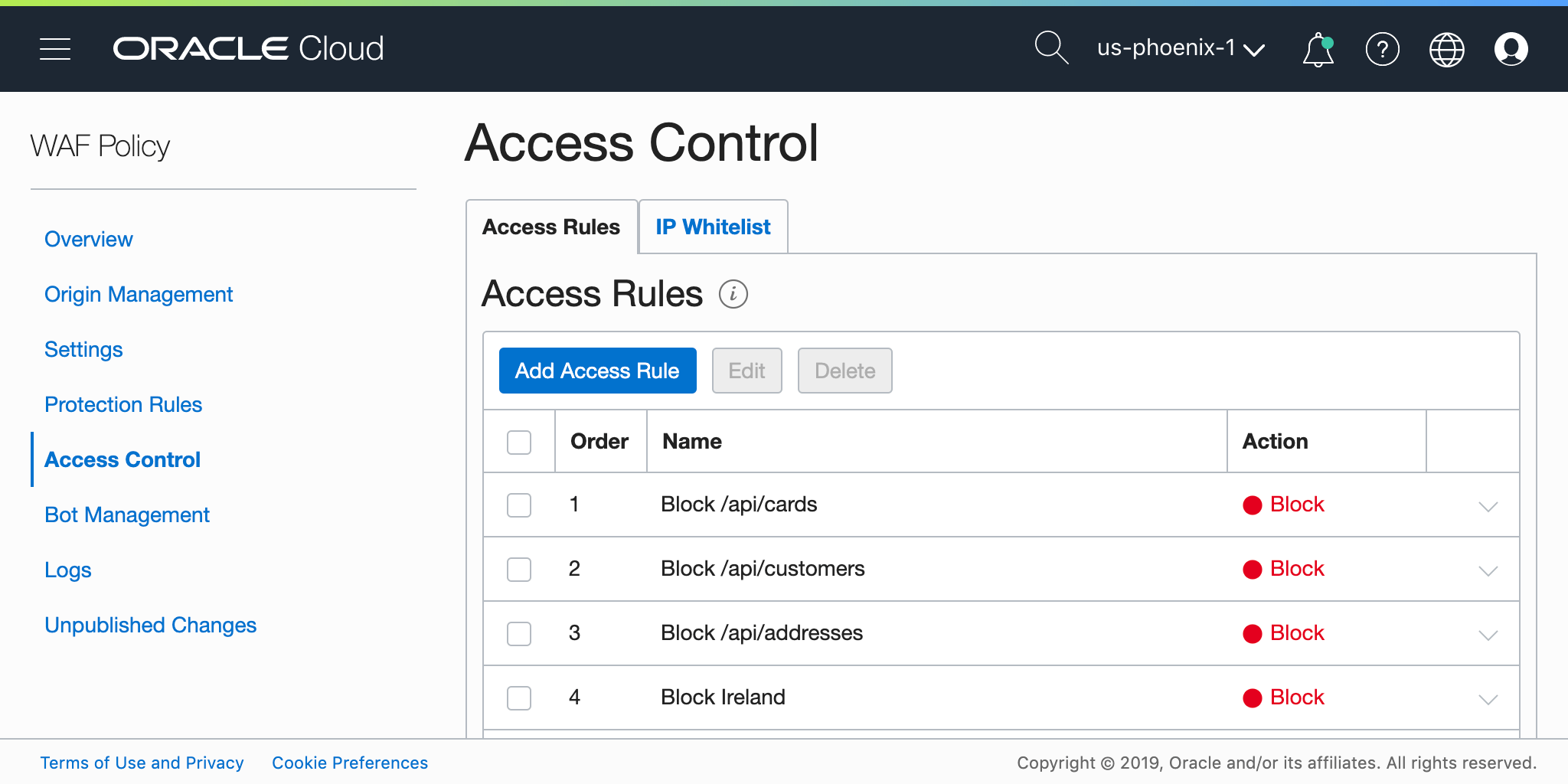

WAF Access Rules

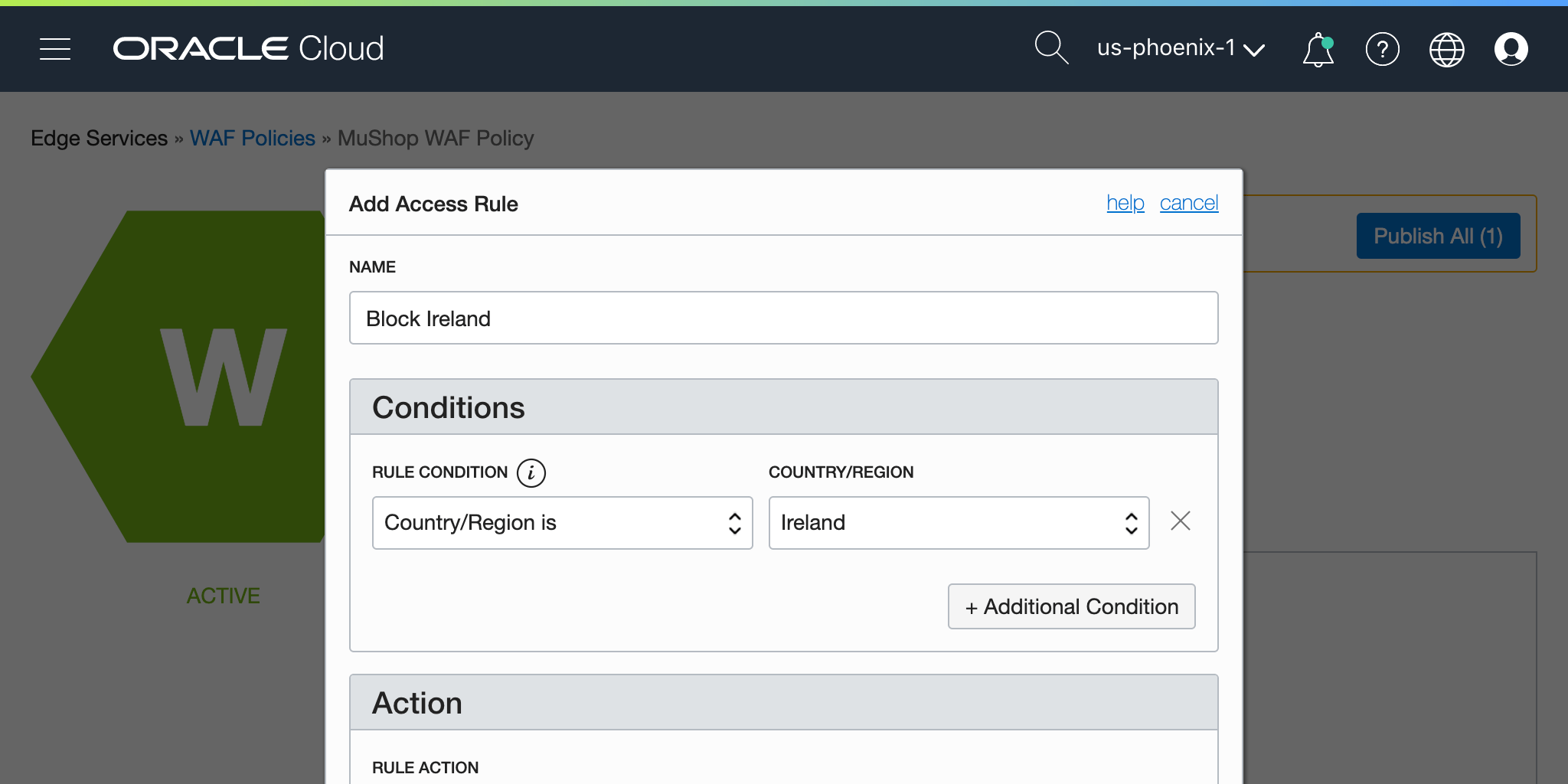

Custom access rules can also be defined based on a set of specified condition(s). Choosing the associative action, error code, and handling are defined as well

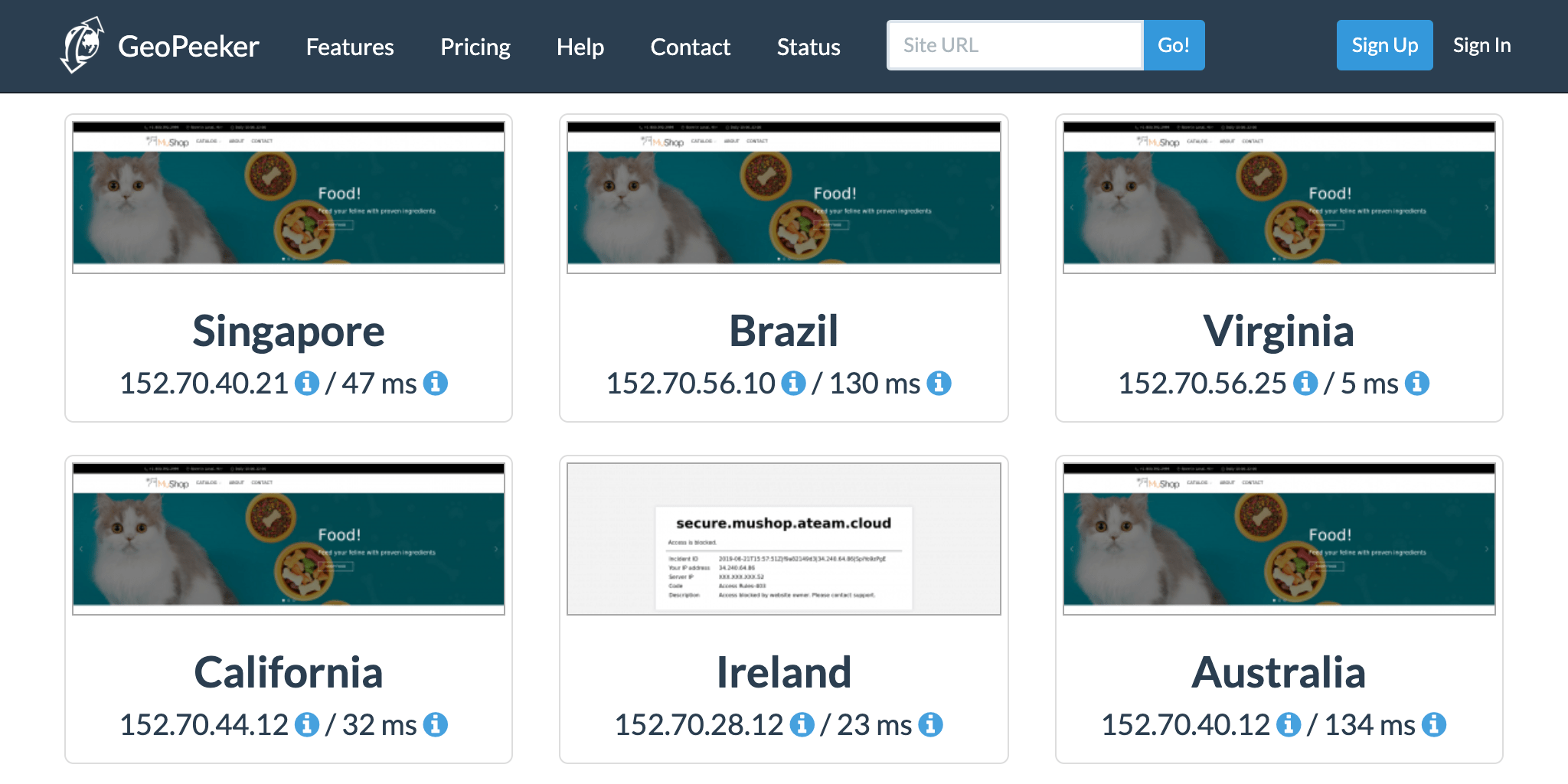

โ˜๏ธ Here access from Ireland is blocked (sorry ๐Ÿ€, demo purposes)

๐Ÿ‘ฟ Try It

WAF Demo

๐Ÿ‘ฟ
attacker
DNS
CNAME
WAF
403
๐Ÿšซ

Verify WAF Edge

curl -I -X GET https://mushop.ateam.cloud
content-type: text/html
vary: Accept-Encoding
x-cache-status: NOTCACHED
date: Sun, 23 Jun 2019 12:35:57 GMT
etag: W/"5d0b92c0-5fe5"
server: ZENEDGE
strict-transport-security: max-age=15724800; includeSubDomains
x-zen-fury: b9c90d1625d96f0414ad23c9562ea95ef6e80ed7
last-modified: Thu, 20 Jun 2019 14:05:52 GMT
x-cdn: Served-By-Zenedge

We see server: ZENEDGE so WAF is working โœ…

DEMO: OWASP Core Rule Set

For sake of demonstration, let's use the application search bar to attempt some attacks from the MuShop user interface. Try the following by entering text into the search field

โš ๏ธ It may also be useful to open Chrome Developer Tools Network tab
SQL injection
;DROP TABLE users
XSS
<script>alert('bad');</script>



DEMO: WAF Access Control

Other Edge Services

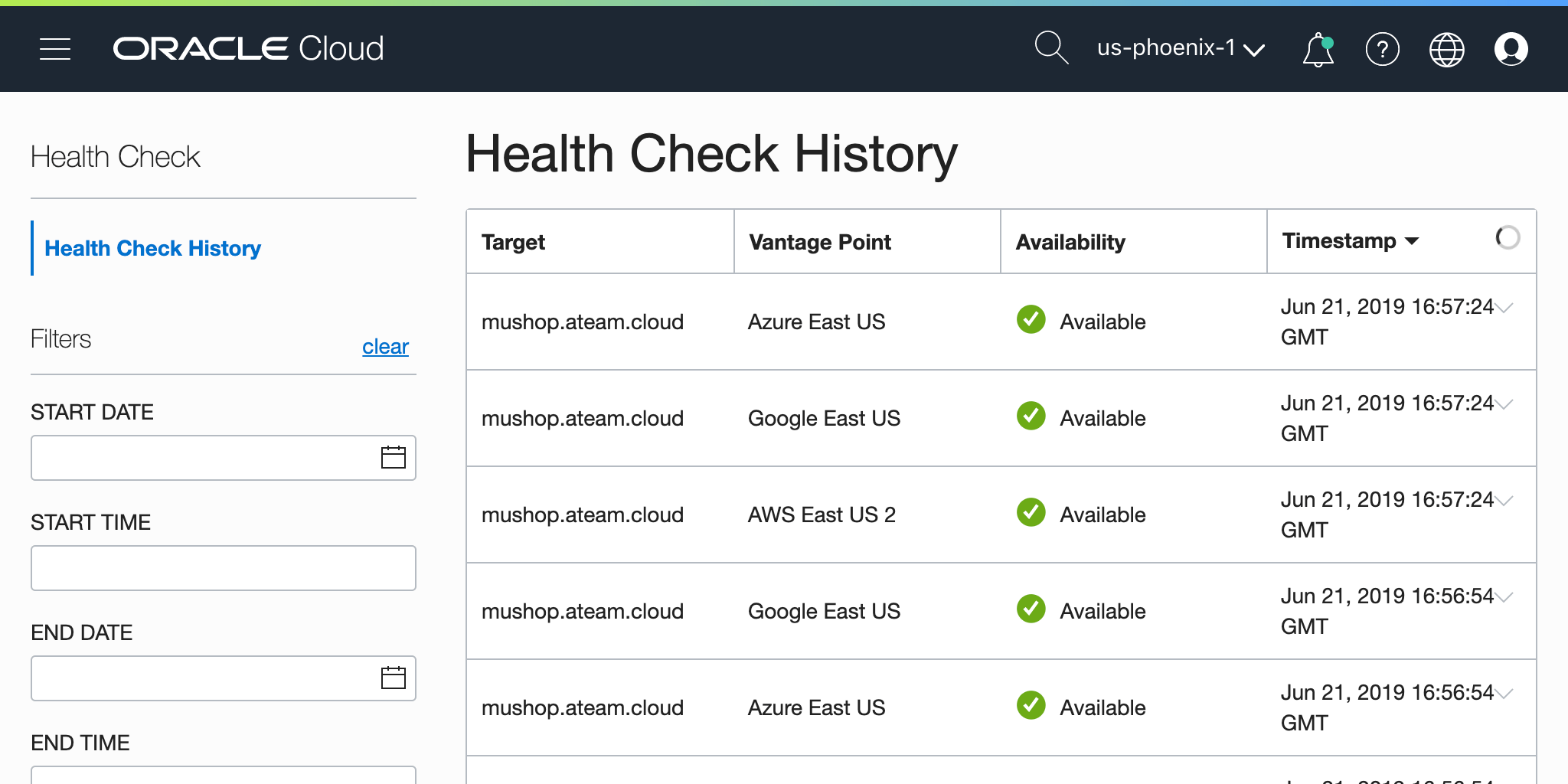

Health Checks

Provides users with high frequency external monitoring to determine the availability and performance of any publicly facing service, including hosted websites, API endpoints, or externally facing load balancers

Traffic Steering

Configure policies to serve intelligent responses to DNS queries, meaning different answers (endpoints) may be served for the query depending on the logic the customer defines in the policy.


โ˜๏ธ Is directly connected to DNS and Health Check services!
